Documentation for non-current version Vivid Trace 1.0.

Go to current release Vivid Trace 2025.1

End of support

Vivid Trace 1.0 Add-on Administration

This document discusses how to administer the Vivid Trace add-on for JIRA. This document covers the following topics:

System Requirements and Compatibility

Refer to the Specifications for information on the supported editions and versions of Atlassian JIRA, including supported browsers and devices as well as integrations with third-party JIRA add-ons.

Installing the Vivid Trace Add-On in JIRA

Vivid Trace is packaged as an add-on for JIRA and is distributed through the Atlassian Marketplace. Use the following procedure to install the Vivid Trace add-on in JIRA.

  1. Ensure you are logged in to JIRA with System Administrator permissions.
  2. Navigate to the "Find new add-ons" administration page within JIRA.
  3. Search the marketplace for Vivid Trace, and when you have identified Vivid Trace in the search results, click either "Free trial" to begin a new trial or "Buy now" to purchase a license. Vivid Trace begins to download.
  4. After logging into to MyAtlassian, enter your information and click "Generate license" followed by "Apply license." If you're using an older version of UPM, you can copy and paste the license key into your JIRA instance.
Figure: Atlassian Marketplace search results for the search term "vivid trace"

Install Vivid Trace by selecting either "Free trial" or "Buy now" and following the directions.

Vivid Trace is ready for use when registered with a valid license. Licenses are obtained through the Atlassian Marketplace as part of the free trial and purchasing processes. For more information on installation, refer to Installing add-ons in the JIRA documentation.

Managing the Add-On

Add-on licensing and version information can be confirmed in Add-on Management. Also, operations that affect the add-on as a whole can be performed here. Use the following procedure to access the add-on management page.

  1. Ensure you are logged in to JIRA with System Administrator permissions.
  2. Navigate to the "Manage add-ons" administration page within JIRA.
  3. Expand the Vivid Trace entry within the list of User-installed add-ons.

Configure Vivid Trace add-on settings.

Buy Vivid Trace directly from the Atlassian Marketplace. Appears when the add-on is not configured with a purchased license key.

Uninstall the add-on from your JIRA system.

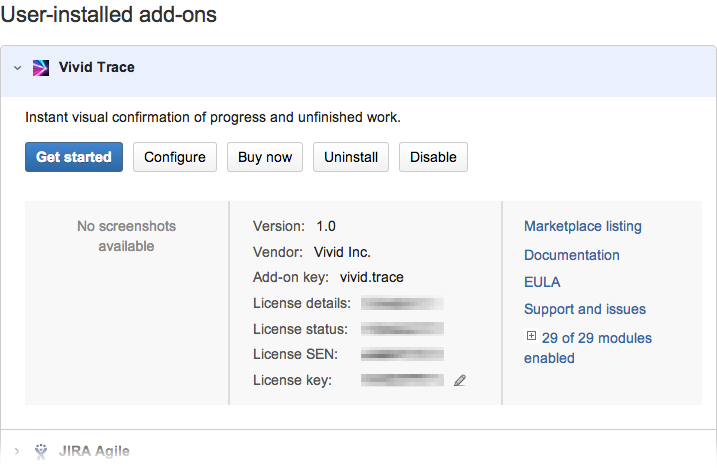

Figure: Managing the Vivid Trace add-on in JIRA

Confirm add-on and license details, and update the license key.

View the documentation set and support options.

For more information on handling add-ons, refer to Viewing installed add-ons and Managing purchased add-ons in the JIRA documentation.

Configuring the Add-On

The Vivid Trace add-on can be configured from within JIRA's administration system. Use the following procedure to view the configuration settings.

  1. Ensure you are logged in to JIRA with System Administrator permissions.
  2. Navigate to the "Manage add-ons" administration page within JIRA.
  3. Expand the Vivid Trace entry within the list of User-installed add-ons.
  4. Click or tap the Configure button to view the add-on configuration page.

Pay heed to any errors and warnings that appear in the configuration page. These messages indicate conditions where add-on functionality is degraded or disabled, and need to be addressed before full functionality can be restored.

The following sub-sections explain Vivid Trace's configurable add-on settings.

Issue Count Soft Maximum

This is an advanced setting. If you are not certain that you understand the potentially deleterious effects of adjusting this setting, we recommend leaving this setting at its default of 1000.

The Issue Count Soft Maximum is a breaker-switch that limits the number of issues fetched and displayed in individual issue link graphs, balancing available compute power with the need to display issue link graphs in their entirety. This setting takes effect immediately whenever updated and affects all projects.

Technically, issue link graph computation resource utilization increases with the connectedness of issues. JIRA server infrastructure is used to compute issue link graphs, and web browsers are used to display the graphs. Given this combination of quantity of issues involved, compute power, and frequency of use, if you have a need to reduce computational resource intensiveness or are finding that issue link graphs are being unacceptably truncated, the Issue Count Soft Maximum can be adjusted as an interim solution.

Reducing the soft maximum increases the likelihood that issue link graphs will be truncated, presenting misleading and inconsistent information liable to negatively impact your organization's decision making processes. Extreme limits, such as 20, might nullify the value of issue link graphs altogether.

Indications that the Issue Count Soft Maximum may need to be decreased, as an interim solution:

Solutions that address the root cause and enable the Issue Count Soft Maximum setting to be restored include:

The Issue Count Soft Maximum may need to be increased if graphs are being unacceptably truncated.

Direct Feedback

When enabled, the Direct Feedback feature allows users to provide product feedback directly to Vivid, giving you the benefits of customer co-created product improvements without burdening your organization. This feature is disabled by default, and must be manually enabled before it is made available for use. This feature is accessible while viewing any issue link graph. This feature is not a support channel; for more information on how to obtain support, please refer to Getting Support.

Each feedback is sent to Vivid as a computerized email message using your JIRA system's Outgoing Mail settings. Therefore, outgoing mail must be enabled and configured. While outgoing mail is unavailable, feedback emails are queued but not forwarded to Vivid. Depending on settings, messages from failed attempts to flush the mail queue might pollute the JIRA log files. Your networking configuration, such as firewall and email infrastructure, must also accommodate sending email through the Internet in order for feedback to reach Vivid. Feedback emails are sent to feedback@vivid-inc.net.

{
  "atlassianApplication" : {
    "buildInformation" : "5.2.11#854-sha1:ef00d61",
    "displayName"      : "JIRA"
  },
  "feedbackDescription" : "USER_PROVIDED",
  "feedbackTopic"       : "USER_PROVIDED",
  "sendersEmailAddress" : "USER_PROVIDED",
  "sendersName"         : "USER_PROVIDED",
  "vividPlugin"         : {
    "pluginKey" : "vivid.trace",
    "version"   : "1.0.0"
  }
}

Specimen of a computerized feedback message body sent to Vivid. Fields marked USER_PROVIDED are free-form inputs and people are at liberty to supply or withhold information in those fields. Also included is brief, non-identifying information about your JIRA system. You can verify that this specimen is representative of information egress by using network protocol analysis (a packet tracer) or by capturing and inspecting entire messages from within your email infrastructure.

At the moment of disabling Direct Feedback, people who are in the midst of filling out feedback forms will not be affected; they will still be able to submit their forms and the resulting feedback email messages will be queued. Similarly, feedback emails queued for delivery will be sent by your JIRA system normally.

Vivid only stores and uses feedback information for the purpose of improving our products and services. See our Privacy Notice as well as our Unsolicited Idea Submission Policy for more information on how we use the feedback data provided to us. Note that Vivid might contact people who supply their contact information in their feedback.

For more information on configuring outgoing mail in JIRA, refer to Configuring JIRA's SMTP Mail Server to Send Notifications in the JIRA documentation.

Getting Support

To view support options, you can visit Vivid Support directly, or starting in JIRA from the add-on management page follow the "Support and issues" link. Support via email is available to people who provide the add-on "License SEN" information as supplied by Atlassian and that we can verify. If you are planning on Help Desk or other people to directly contact Vivid Support, their support experience will be more efficient if that license information is shared with them so that they can include it in their support requests. The terms of support are fully detailed on the Vivid Support website.

Uninstalling the Add-On from JIRA

There is no product lock-in, only added value. If you no longer need the benefits of managing work at higher levels, visibility into your work processes, or effortless reporting, use the following procedure to uninstall the Vivid Trace add-on from JIRA.

  1. Ensure you are logged in to JIRA with System Administrator permissions.
  2. Navigate to the "Manage add-ons" administration page within JIRA.
  3. Expand the Vivid Trace entry within the list of User-installed add-ons.
  4. Click the Uninstall button and follow the directions to complete the uninstall process.

Vivid Trace can be easily reinstalled at a later time by following the installation instructions in this document. For more information, refer to Uninstalling add-ons in the JIRA documentation.
